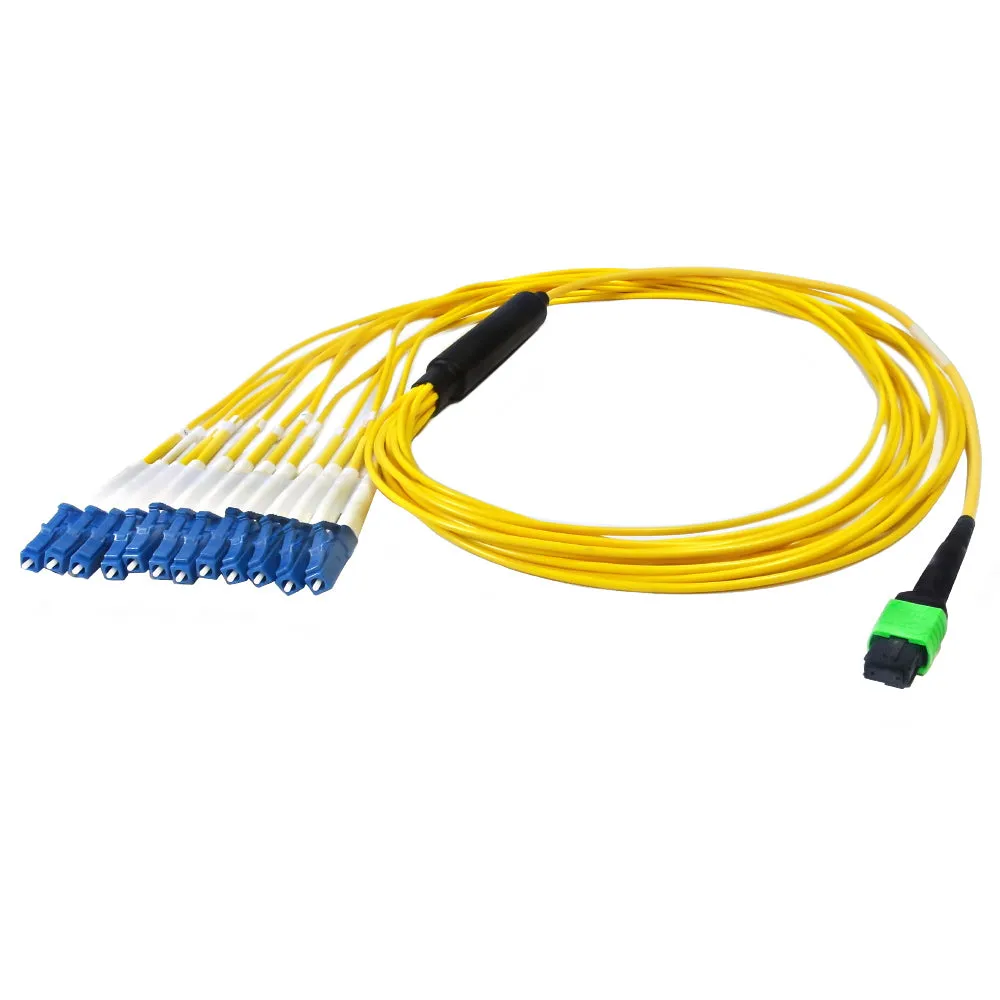

This singlemode fiber optic MPO/MTP breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 12 simplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.
| Physical Characteristics | |
|---|---|
| Breakout Length | 24 inches |
| Color | Yellow |
| Cable Diameter | 3mm |
| Fiber Count | 12 Fibers |
| Fiber Type | Singlemode 9/125 Micron |
| Glass Manufacturer | Corning Glass SMF-28 Ultra |
| Jacket Rating | Plenum (OFNP) |
| Temperature Range | 0 – 60°C |
Connector(s) | |
| Connector A | 1 - 12-Position MPO/MTP APC Female (no guide pins) Elite Connectors |
| Connector B | 12 - LC Simplex Male |
| Performance | |
| MPO/MTP Insertion Loss | ≤0.35 dB |
| MPO/MTP Return Loss | ≥60db |
| LC Insertion Loss | ≤0.3 dB |
| LC Return Loss | ≥50 dB |
| Testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 3ft - 1m | 6ft - 2m | 10ft - 3m | 15ft - 5m | 33ft - 10m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m |
|---|---|---|---|---|---|---|---|---|
| 0.17 lbs | 0.20 lbs | 0.22 lbs | 0.27 lbs | 0.38 lbs | 0.48 lbs | 0.60 lbs | 0.70 lbs | 0.82 lbs |
